Laboratory UV LED Spot Curing System
The UV LED spot curing system delivers stable, high-intensity UV energy through multiple independently controlled channels, enabling fast and repeatable curing of UV adhesives, coatings, and encapsulation materials. The system can be equipped with up to four independent curing heads, offering exceptional flexibility for automated production lines, laboratory testing, and precision assembly processes.
Technical Specifications
| Parameter |
Specification |
Parameter |
Specification |
| Light Source |
UV LED |
Wavelength |
365nm / 385nm / 395nm / 405nm |
| Control Channels |
1-4 Independent Channels |
Output Intensity |
Adjustable |
| Operation Mode |
Continuous / Timer |
Cooling Method |
Air Cooling |
| Control Interface |
LCD Display |
Input Voltage |
AC 100-240V, 50/60Hz |
| LED Lifetime |
>20,000 Hours |
External Control |
PLC / I/O Trigger |

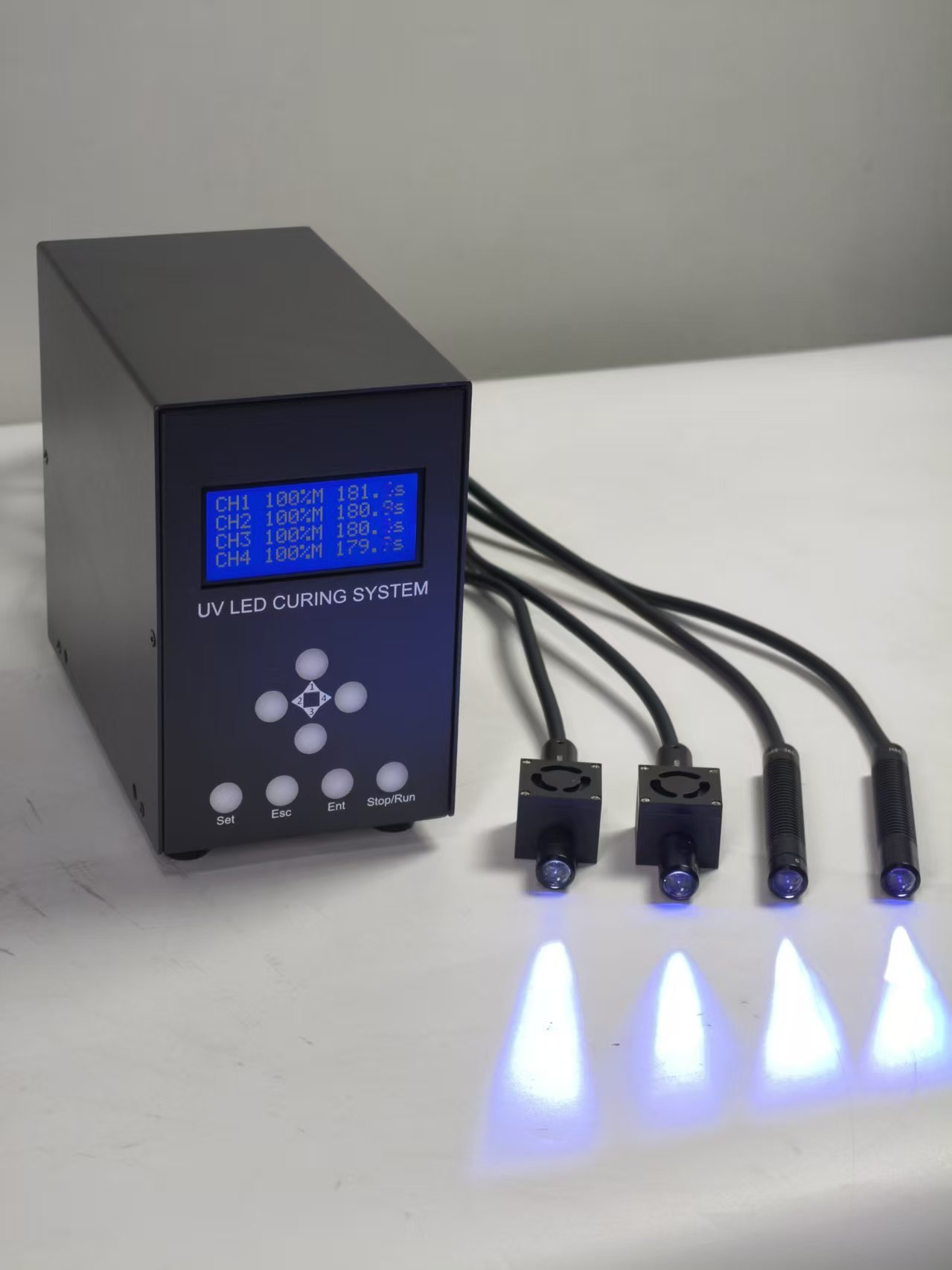

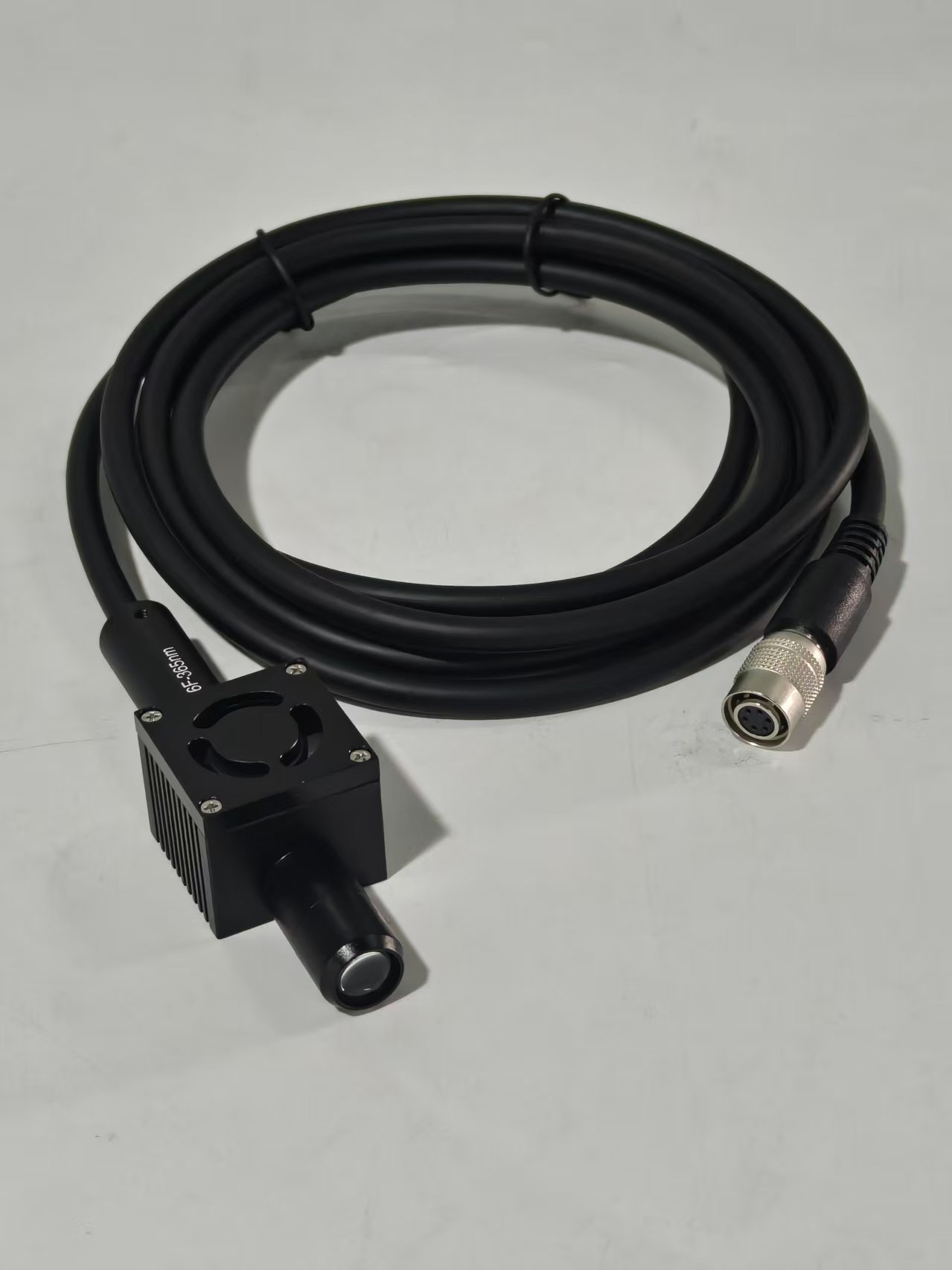

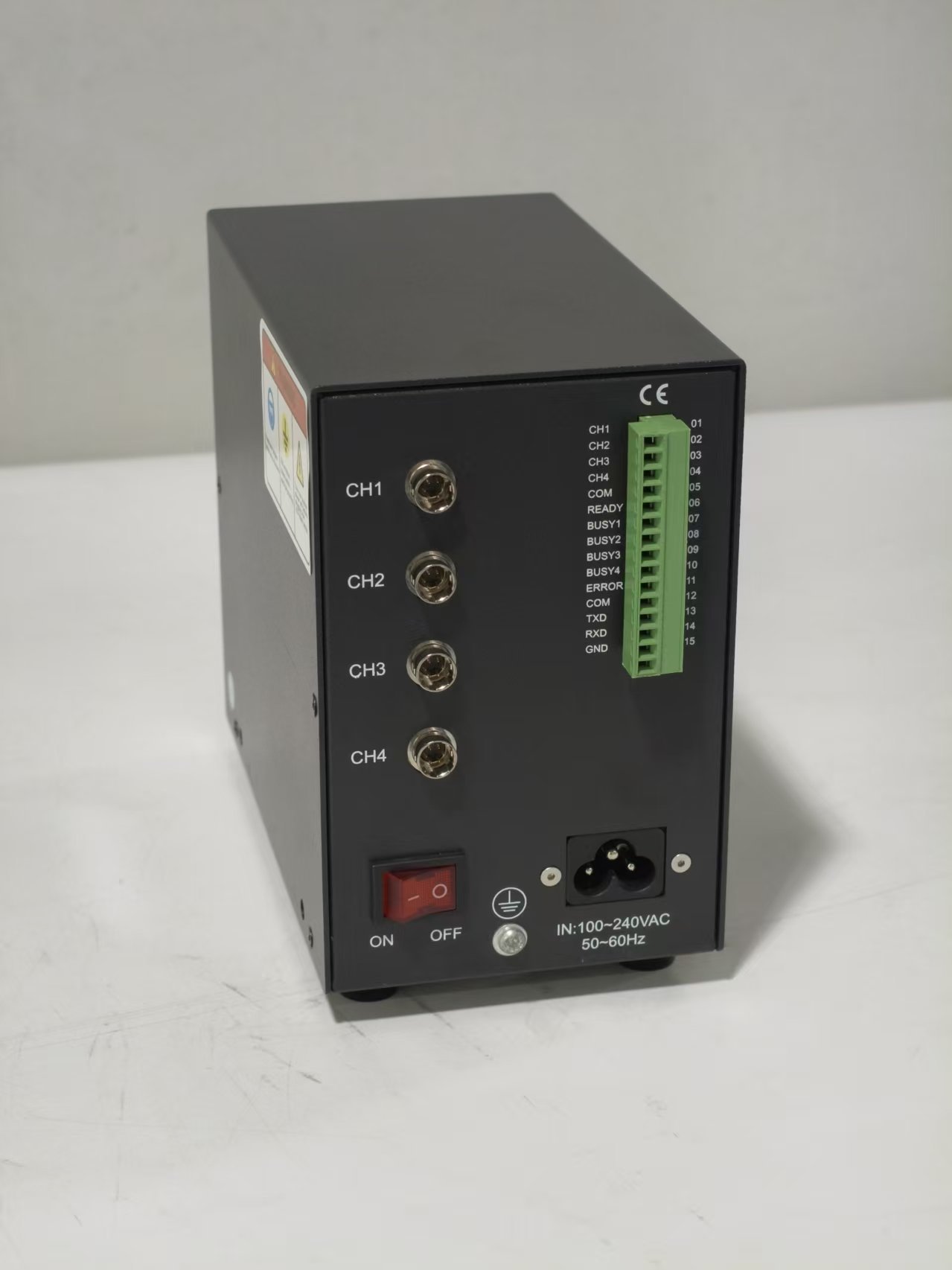

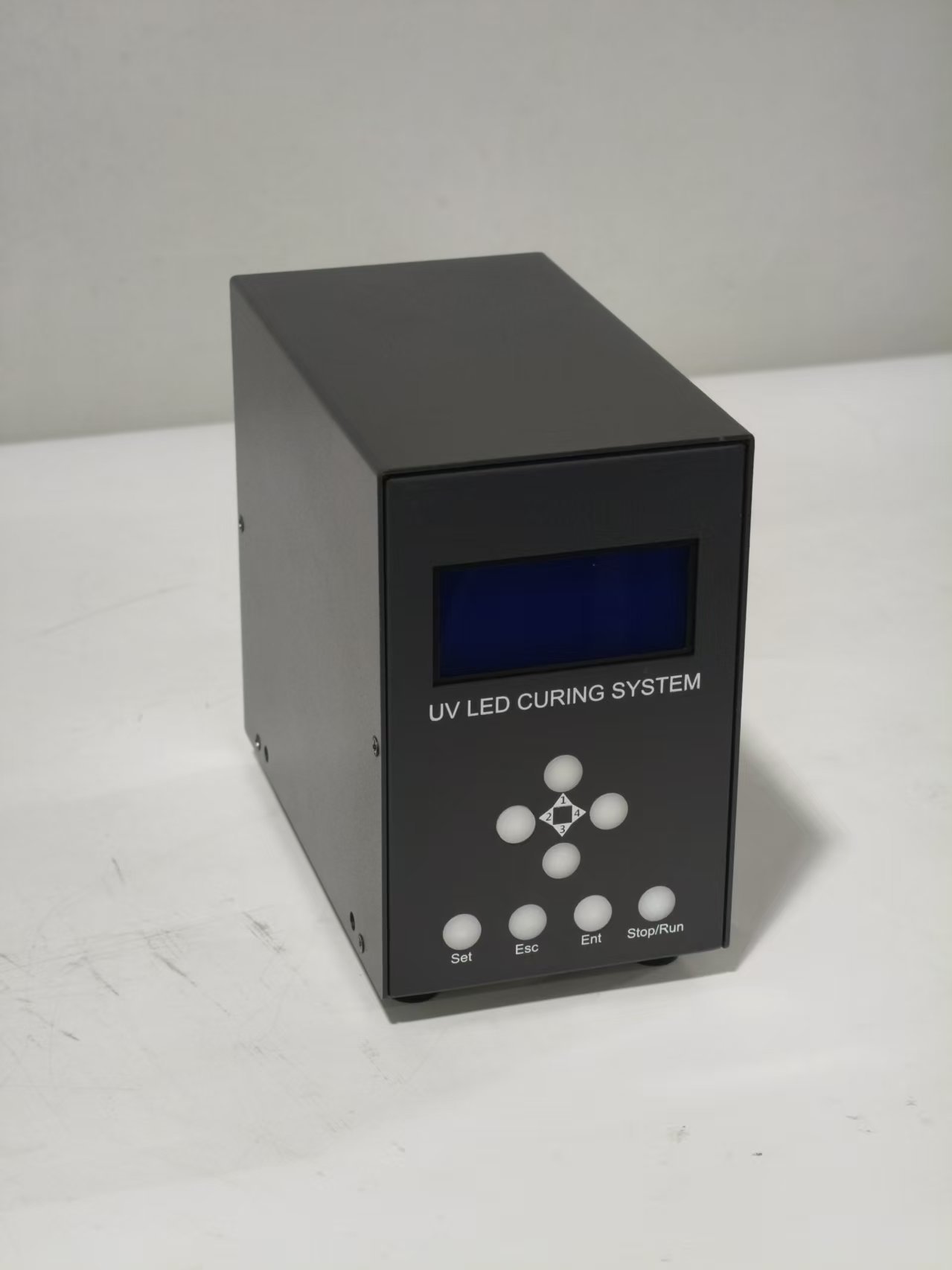

Product Images
Applications
Electronics Manufacturing
Medical Device Manufacturing
Optical & Photonics Industry
Product Features
Multi-Channel Independent Control
Each UV curing head can be programmed individually for:
- Output intensity
- Exposure time
- Trigger mode
- Operating sequence
This allows multiple curing processes to run simultaneously.
High Irradiance Output
Provides concentrated UV energy exactly where needed. Suitable for:
- UV adhesive bonding
- Optical alignment
- PCB encapsulation
- Medical catheter assembly
- Camera module manufacturing
Intelligent LCD Control Interface
The front-panel LCD display allows operators to:
- Monitor channel status
- Adjust intensity levels
- Set curing time
- Store process parameters
Simple operation reduces setup time and improves production consistency.
Low Heat Generation
Compared with traditional mercury lamps, UV LED technology significantly reduces thermal stress on sensitive components. Ideal for:
- Plastic parts
- Optical lenses
- Electronic assemblies
- Medical components
Frequently Asked Questions
What is a UV LED Spot curing system?
UV LED Spot curing system is a precision curing device that delivers concentrated UV light through a small spot, ideal for curing UV adhesives, coatings, and encapsulants in electronics, medical devices, and optical assemblies.
What wavelengths are available for UV LED point light sources?
Common wavelengths include 365nm, 385nm, 395nm, and 405nm. The best wavelength depends on the UV adhesive, coating, or ink being used.
What industries use UV LED Spot curing systems?
UV LED Spot curing systems are widely used in electronics manufacturing, medical device assembly, semiconductor packaging, optical bonding, and laboratory research.
Can the UV intensity be adjusted?
Yes. The UV intensity and exposure time can be independently adjusted to meet different curing process requirements.
